CD32

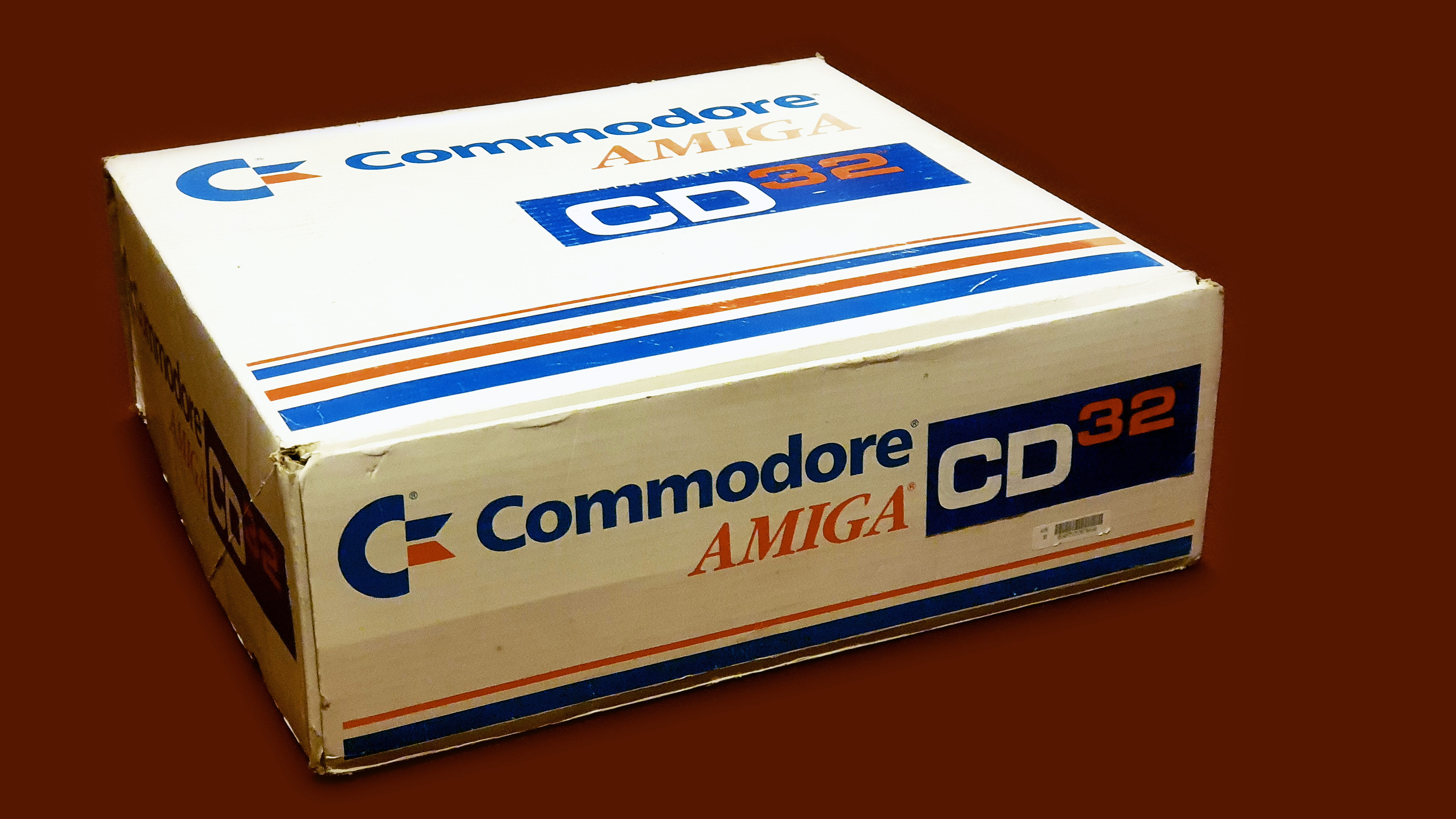

complete with box and all accessories

Serial: 513515

• CPU: Motorola 68EC020 at 14.32 MHz NTSC or 14.18 MHz PAL
• RAM: 2 MB Amiga Chip RAM
• ROM:
  • 1 MB Kickstart ROM with CD32 firmware
  • 1 KB non-volatile EEPROM memory for game saves
• Chipset:
  • Advanced Graphics Architecture [AGA]
  • Additional Akiko chip [CD-ROM controller and performs chunky to planar graphics conversion]
• Video:
  • 24-bit color palette [16.8 million colors]
  • Up to 256 on-screen colours in indexed mode
  • 262 144 on-screen colors in HAM-8 mode
  • Resolutions from:
    • 320×200 to 1280×400i [NTSC]
    • 320×256 to 1280×512i [PAL]
• Audio:
  • 4 × 8-bit PCM channels [2 stereo channels]
  • 28 kHz maximum DMA sampling rate
• Removable storage: Double-speed [300 KB/s] CD-ROM drive [proprietary MKE controller]
• Input/Output ports:
  • Front:
    • Headphone jack 3.5 mm TRS stereo jack with volume control
  • Left:
    • 2 × Mouse/Gamepad ports [DE9M]
    • RS-232 serial AUX port and for keyboard etc. [6-pin mini-DIN]
  • Back:
    • Expansion slot behind a plate
    • Power switch
    • Power input for +5V DC 2.2A and +12V DC 500mA [4-pin DIN]
    • RF audio/video out [RCA] and channel adjust
    • S-Video out [4-pin mini-DIN], however French versions had 8-pin Mini-DIN instead with RGB signals
    • Composite video out [RCA]
    • Audio out Left & Right [2 × RCA]
• Expansion slots:
  • 182-pin expansion socket for official MPEG decoder cartridge or third party devices such as the SX-1 and SX32 expansion packs
• Operating System:
  • AmigaOS 3.1 [Kickstart 3.1 and CD32 firmware]

• work performed:
• • whole machine completely dismantled and cleaned
  • mainboard and PSU recapped with Rubycon brand 105° type
